High Air Pressure DTH Hammer DHD340 for Mining,Water well

Name: High Air Pressure DTH Hammer DHD340 for MiningWater well
Brand: Super Diamond
Price: 1 USD

Model NO. : DHD340

Manufacturing Process : Forging

Material : Alloy Steel

Mining Type : Mining

Transport Package : Ply-Wood Case for Safe Delivery

Trademark : Super Diamond

Origin : China

HS Code : 8412310090

Supply Ability : 50, 000PCS / Year

Customization : Available

Certification : ISO 9001:2008

Surface Treatment : Spray-Paint

Place of Origin : China

Brand Name : Super Diamond

Model Number : DHD,QL,Mission,SD

MOQ : 1

Contact Now

About us:

We are a leading manufacturer for various of high air pressure rock drilling tools, incl. DTH hammers and bits, RC hammers and bits, top hammer button bits, ODEX etc. Our factory locates in LiuYang city, HuNan province, China, where occupies an area of 26,600 square meters, and production facility occupies 22,000 square meters.

Premium quality, professional serivce and competitive price, help us get very good reputation from our worldwide customers, not only from the domestic, also from Brazil, Peru, South Africa, Australia, Turkey, Russia, Ukraine, Korea etc..

Our factory general view:

High Air Pressure DTH Hammer DHD340 for Mining,Water well

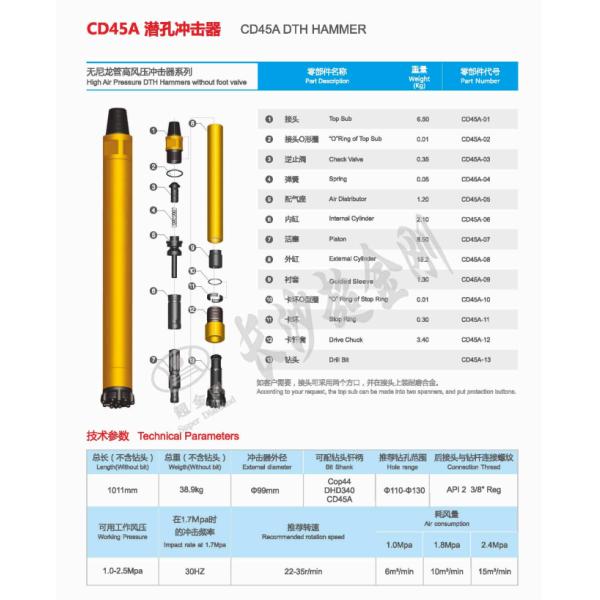

DTH Hammer specifications:

Products specifications:
Hammers	Bit Shank	Connection Thread	Suitable bit	Working pressure	Air consumption

1-3" Middle-low pressure DTH hammers		RD40 box		0.7-1.75Mpa	0.7Mpa	4.5m3/min
	BR1	RD50 box	¢64-¢76mm	0.7-1.75Mpa
	BR2	API 2 3/8" Reg	¢70-¢90mm	0.7-1.75Mpa	1.0Mpa	4m3/min
	BR3		¢90-¢110mm		1.4Mpa	5m3/min
3" hammers	DHD3.5	API 2 3/8"Reg	¢90-¢110mm	1.0-1.5Mpa	1.0Mpa	4.5m3/min
	COP32/COP34
	M30				1.5Mpa	9m3/min
4" hammers	DHD340	API 2 3/8"Reg	¢105-¢130mm	1.0-2.5Mpa	1.0Mpa	6m3/min
	COP44
	QL40
	SD4				1.8Mpa	10m3/min
	M40				2.4Mpa	15m3/min
5" hammers	DHD350	API 2 3/8"Reg/API 3 1/2"Reg	¢130-¢156mm	1.0-2.5Mpa	1.0Mpa	9m3/min
	COP54
	QL50
	SD5				1.8Mpa	15m3/min
	M50				2.4Mpa	23m3/min
6" hammers	DHD360	API 3 1/2"Reg	¢152-¢203mm	1.0-2.5Mpa	1.0Mpa	10m3/min
	COP64
	QL60
	SD6				1.8Mpa	20m3/min
	M60				2.4Mpa	28.5m3/min
8" hammers	DHD380	API 4 1/2"Reg	¢200-¢279mm	1.0-2.5Mpa	1.0Mpa	15m3/min
	COP84
	QL80				1.8Mpa	26m3/min
	SD8				2.4Mpa	34m3/min
10" hammers	SD10	API 6 5/8"Reg	¢254-¢330mm	1.0-2.5Mpa	1.0Mpa	22m3/min
	NUMA100				1.8Mpa	40m3/min
					2.4Mpa	55m3/min
12" hammers	DHD1120	API 6 5/8"Reg	¢305-¢381mm	1.0-2.5Mpa	1.0Mpa	30m3/min
	SD12
	NUMA120				1.8Mpa	56m3/min
	NUMA125				2.4Mpa	78m3/min

Quality warranty:

Our products are made of high quality steel and all spares parts are inspected strictly before shipping. We have quickly responses for your complaint and suggestion.

Package:
Using ply-wooden cases and pallet for package to protect the products and avoid the damagement during transportation. Also we can customize package according to your special requests.

Production time:

Generally need 20-30 days

Transportation:
By air, By Express or By sea according to your requests.

Factory Activities:

Why choose us:
1. High quality raw material, with premium hardened procedures for long life.
2. Full production chain to secure stable and prompt production leadtime.
3. Experienced Senior Technicians.
4. Long year experienced workers and engineers.
5. Quick and efficient service.
6. Care customers' concerned.
7. Customized acceptable.

Should you have any query or demand, pls come to us freely.

Thank you very much for your time.
